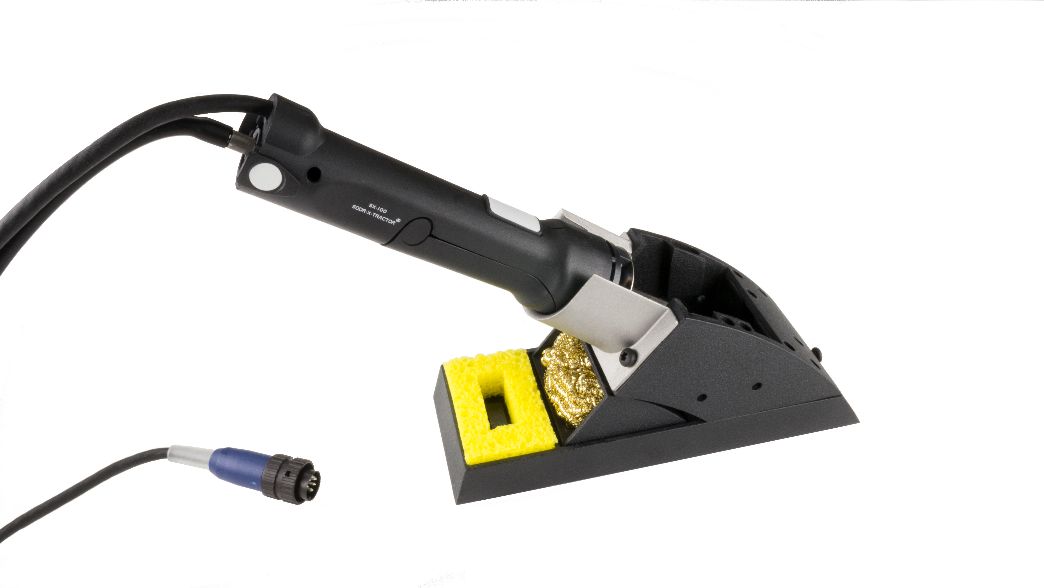

SX-100 Sodr-X-Tractor with Tip & Tool Stand (IntelliHeat)

SX-100 Sodr-X-Tractor with Tip & Tool Stand (IntelliHeat)

PACE revolutionized the electronics industry in the 60's by creating the first self-contained continuous vacuum desoldering system. Now PACE has taken the best desoldering handpiece on the planet and made it better! The SX-100 Solder Extractor has been improved so that is does not clog! The modular heater has been re-engineered to transfer heat better through the length of new SX-100 Tips. SX-100 Desolder Tips will not clog because the isolated hot solder path is designed to stay well above solder melt temperature, preventing even Lead-Free solder from solidifying. Designed for high volume desoldering operations, the SX-100 features an environmentally friendly/disposable collection chamber to maximize productivity. When the filter is full, just pull out the chamber, pop out the old filter and replace with a new one - all within 15 seconds! If you prefer, the SX-100 can also be used with a re-cleanable glass chamber (included). New 2 and 4-sided Pik-Tips allow safe, rapid reflow and removal of a wide variety of TSOP's, QFP's and Flatpacks. Pik-Tips are designed to reflow all the leads on the component simultaneously and incorporate a unique vacuum pick. Once reflowed, the vacuum is activated and the component is lifted off the PCB. Kit comes with Tip & Tool Stand with Dry Wipe capability. Blue Connector version: For use with InelliHeat Systems only.

  • Features
    Laser-trimmed, Platinum RTD Temperature Sensor is 5 times more accurate than conventional thermocouples.
    Tip and Heater has been redesigned, does not clog!
    Widest range of standard, precision and long reach desoldering tips available, including 2 and 4-sided Pik-Tips.
    Flo-D-Sodr desoldering tips available for safe removal of excess surface solders, excellent for BGA pad clean-up.
    Disposible Flux/Sodr Trap or re-usable Glass Chamber can be swiftly replaced in 15 seconds.
    Modular heater design, remove/install plug-in heater in 2 minutes flat. No wires, no calibration, no hassle!
    ESD-safe, rugged and durable construction.
  • Resources
  • Manuals
    SX-100, SX-90 & SX-80 Sodr-X-Tractor Handpieces Manual
  • Brochures
    SX-100/SX-90 Sodr-X-Tractor Desoldering Handpiece Tips & Spare Parts
